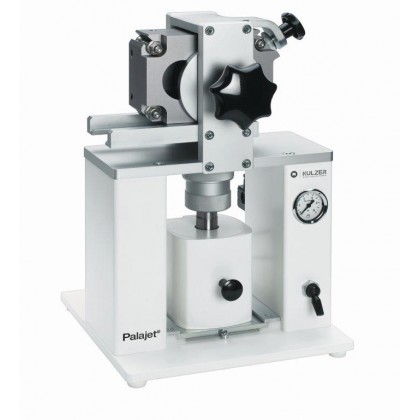

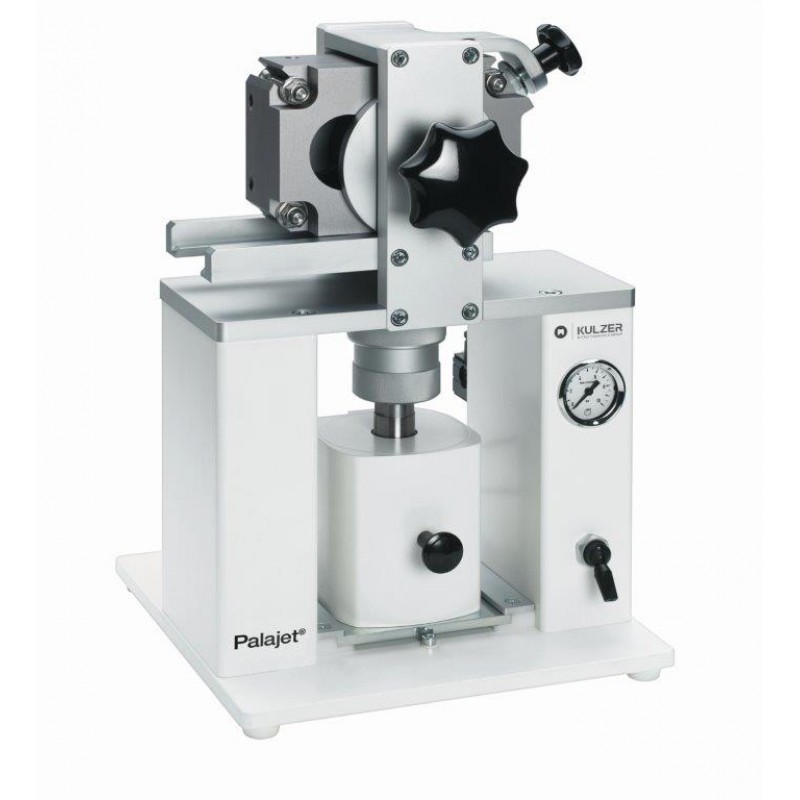

Kulzer Palajet Injection Unit Inc Duoflask and Accessories - 66020450 *INDENT SPECIAL ORDER ITEM

Brand: Kulzer
Product Code: K-PJ

Description
PDF Documents

Kulzer Palajet Injection Unit Inc Duoflask and Accessories - 66020450

2025 RRP $5711.00 + GST

* Please read the product manual and watch the YouTube videos for this product and process technique before committing to this purchase so you are aware of how it works and the results you can achieve.

If you would like the complete system setup packages including Palajet Unit & Palamat Elite curing pot - See online or contact us to discuss.

On Site Training Available With New Systems - Subject to availabilty and location **

Pneumatic injection unit for fabrication of full and partial dentures is adapted especially to suit material properties of PalaXpress, PalaXpress ULTRA , Paladon 65 (Heatcure).

The Palajet is extremely easy to use. The closing system avoids errors and therefore achieves consistent processing properties. During the pneumatic injection process the denture acrylic is forced, under pressure, into the flask. The flask is filled in a controlled system from bottom to top, avoiding air bubbles and voids. The flask remains in the Palajet for a further 5 minutes (cold cure), before the final polymerisation in the Palamat elite unit.

The results speak for themselves in terms of quality and economical processing. High quality full dentures produced this way have many advantages over those processed in conventional methods eg. No raised bite, resistant to breakage, exact fit and virtually eliminates adjustment.

Precision engineering for injection denture fabrication
For injection of heat‐curing and cold‐curing acrylics
No increase in the vertical dimension
Hardly any finishing needed
Maintenance‐free, effortless operation

Specifications:
Unit Dimensions: 400mm H x 290mm W x 265mm D
Pressure Connection: Max. 10 bar
Nominal Pressure: 4 Bar
Plunger Rate: 0 ‐ 50mm / sec
Pressing Force On Cylinder: 2kN = 200kP
Weight: 13.5kg

Base Unit Includes: Injection unit, 1 x cylinder with cover, 1 x Palajet Duoflask, 12 x inserts for injection cylinder, 1 x PALA dosing cup, 1 x PALA mixing cup, 1 x PALA mixing spatula, sprue wax, timer, 1 x Flask Carrier & Pins
