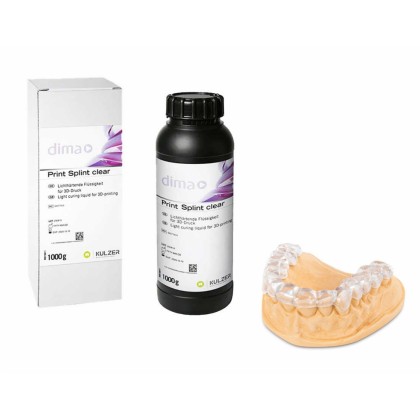

Kulzer DIMA Print Resin - Splint Hard - Clear 1000g - 66077916
- Brand: Kulzer
- Product Code: K-DSP-C
Kulzer DIMA Print Resin - Splint Hard - Clear 1000g - 66077916
Validated ONLY for use with Asiga Printers, Kulzer Cara Printers and Kulzer LED Curing Process
IFU - Instructions For Use

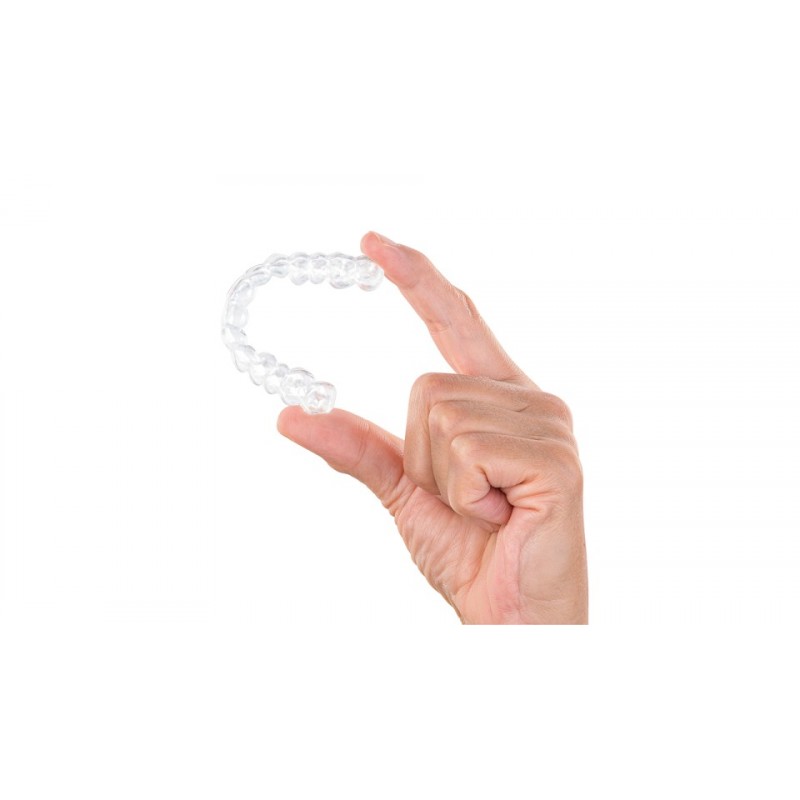

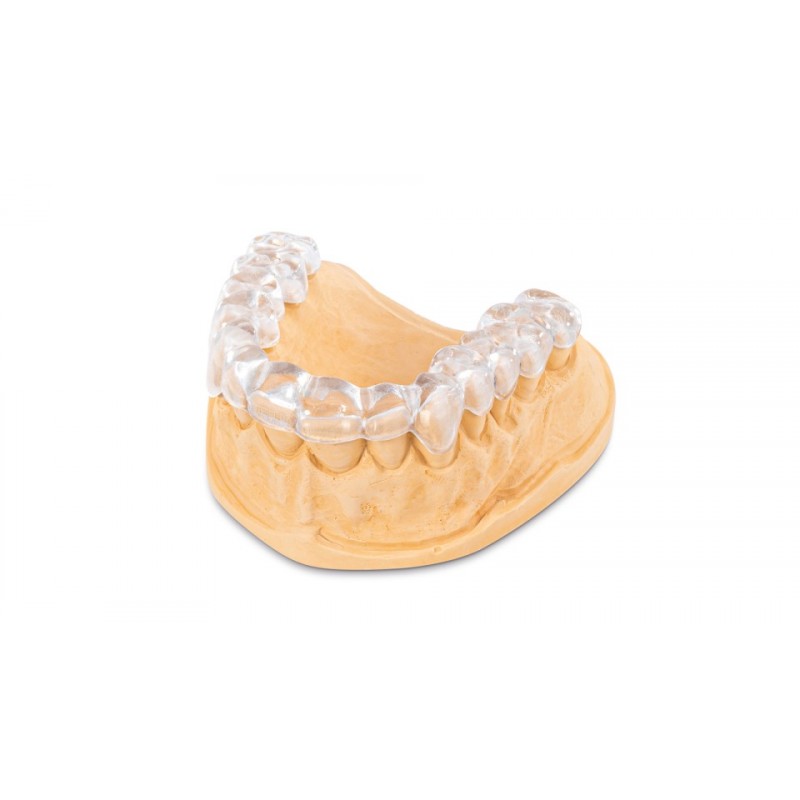

dima Print Splint clear is an MD class IIa material for 3D printing. When used together with the cara Print System, it saves you time and money whether compared to traditional methods or milling. And by saving the STL files, you can always reprint a replacement with ease.
Highly efficient production of reliable splints
- High accuracy
- High elongation at break
- Additional flexibility for high wearer comfort
- Transparent
- MD class IIa
- Fast, efficient & economical production process
Product overview | |||||||
---|---|---|---|---|---|---|---|
MDD class | Color | Flexural Strength (Mpa) | Flexual Modulus (Mpa) | Viscosity [Pa*sec] | Cleaning time in Isopropanol (cara Print Clean or ultra sonic bath) | Post-curing time (HiLite Power 3D) | Post-Curing time LEDcure (no turning of object necessary) |
IIa | transparent | 110.9 | 2461 | 0.7 | pre-cleaning: 3 minutes postcleaning: 2 minutes | 6 minutes (3 minutes front side +3 minutes reverse side) | Select dima Splint clear program |
Printing performance overview | |||||||
---|---|---|---|---|---|---|---|
Example | Build height [mm] | Time [min] for 50 µm resolution | Time [min] for 70 µm resolution | Time [min] for 100 µm resolution | Material consumption [ml] | Avg. material costs | Avg. material costs/part |
2 splints 0° | 16.65 | 34 | 24 | 17 | 9.36 | 2.52 | 1.26 |
