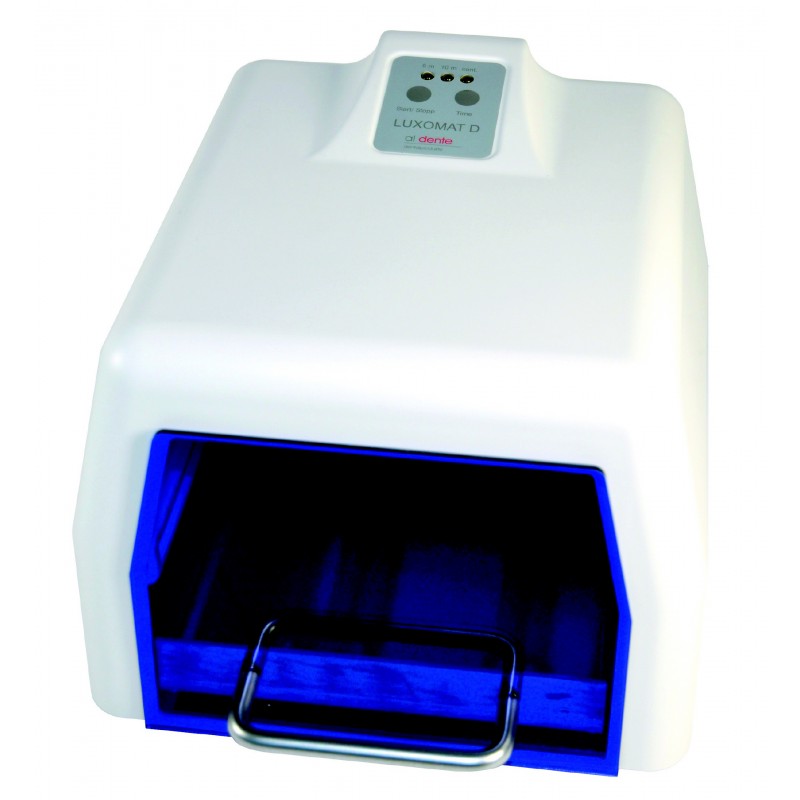

Aldente Luxomat D 36W Light Curing Unit 581-009-020 (UVA Fluorescent Lamp Style 2 x White 2 x Blue) - 1 UNIT

A high-capacity light-curing device for curing dental materials like universal trays, sealing dies and block-out materials.

DOES NOT cure Signum Metal Bond II or Composites (Only Kulzer Hilite Power or NK Optik Otoflash unit has the correct power for these types of materials)

There is sufficient room in the polymerization chamber for up to 4 models or one articulator. Due to the semi-circular arrangement of each 2 UVA fluorescent lamps and blue fluorescent lamps, a homogeneous polymerization light for a reliable and uniform curing of the materials is provided.

The polymerization time can be selected: either 5 minutes, 10 minutes or continuously.

MANUAL DOWNLOAD

• Cures special tray material, sealing enamels and blocking-out materials.
  • DOES NOT cure Signum Metal Bond II or Composites (Only Kulzer Hilite Power or NK Optik Otoflash unit has the correct power for these types of materials)
• Up to 4 models or an articulator.
• 36W = 2 UVA (9W/78 BL350 G23) and 2 UV Blue (9W/71 BL355 G23) Tubes
• Emission Range: 350‐500 nm
• Weight 3kg
• External Size: 170H x 245W x 250D
• Made In Germany

Number of fluorescent lamps: 2 pcs. each of UVA and blue light 9 W
Range of emission: 350 - 500 nm
Inner dimensions:
Width: 17 cm, Height: 12 cm, Depth: 16 cm.
item no. 581-009-020

Replacement lamps:
UVA fluorescent lamp 9 W, emission range 350 - 400 nm, item no. 213-920-022
Blue light fluorescent lamp, 9 W, emission range 400 - 500 nm, item no. 213-920-023

** Replace all lamps every 12 – 18 months. Efficiency and curing time reduces after about 2000 hrs

** Replace all lamps at the same time. Not just one otherwise they will cure unevenly.
