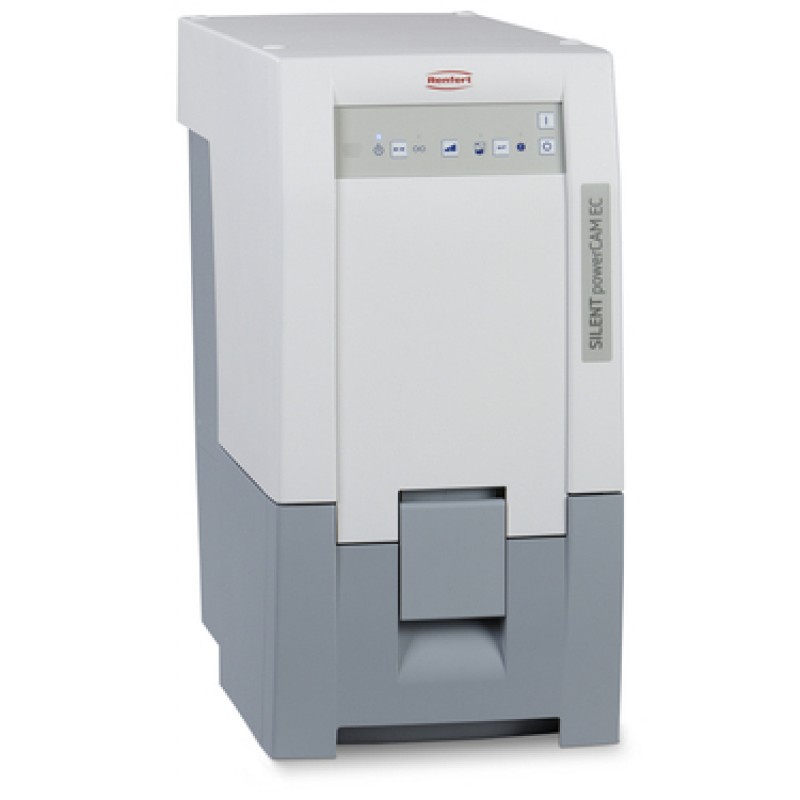

Renfert Silent powerCAM EC Dust Extraction Unit - 220-240V 29390000 - Heavy Duty Bagless For Larger Milling Machines - SPECIAL ORDER
- Brand: Renfert
- Product Code: R-S-PC
SPECIAL ORDER ITEM - SUBJECT TO EXHANGE RATE PRICE FLUCTUATIONS - COVID SITUATION
** THIS ITEM MAYBE SPECIAL ORDER - LEADTIME MAYBE 5 + WEEKS *** - Please check with us before ordering.
Contact Us to discuss system setup options and your individual requirements.
RRP: $4849.00 + GST
CAD/CAM Version To Suit Larger Volume Milling Machines
Requires extra interface cable to suit milling machine brand.
SILENT powerCAM EC 220-240 V, 50/60 Hz - Device extraction unit for CAM systems
Function & Performance
Powerful extraction unit with EC motor, bag-free, fine filter technology, suitable for frequently used CAM systems.
Advantages
-
Reliable production process thanks to a low-maintenance EC motor with 5,000 guaranteed operating hours.
-
Suitable for CAD-CAM systems requiring high suction performance due to a powerful motor with a max. flow rate of 4000l/min.
-
High operating comfort thanks to bidirectional communication with the CAM system via PLC control.
Details:
-
No dust bag change due to bag-free fine filter technology, including automatic filter cleaning.
-
Safe disposal of fine milling dusts with the aid of a disposal bag.
-
Very low operating noise of 54.3 dB(A).
Scope of Delivery
-
1 Quick Start Guide
-
3 disposal bags (1 pc. inserted in the dust drawer)
-
1 suction hose 2 m, incl. 2 mufflers
Technical data - SILENT powerCAM EC 220-240 V, 50/60 Hz
Permissible mains voltage / frequency |
220-240 V, 50/60 Hz |
Suction turbine power |
1610 W (230 V) |
Volume flow (max.) |
3984 l/min (2.34 ft³/s) |
Max. depression |
257 hPa (3.2 psi) |
Filter quality |
Class M according to EN 60335-2-69 |
CAM interface |
RJ 45 socket |
SPS: Input signal / Output signal |
2x inputs / 2x outputs, turbine suction level 1, suction level 2, turbine off, filter cleaning – status information |
LpA* (at max. volume flow) |
54,3 dB(A) |
Weight (empty) |
approx. 18 kg (39.7 lbs) |
Dimensions (W x H x D) |
270 x 535 x 540 mm (10.6 x 21.1 x 21.2") |
Ø Suction fittings, interior / exterior |
Connection only inside possible – Ø 42 mm |
Fill level dust drawer |
approx. 7 l (1.85 gal) |
* sound pressure level |
