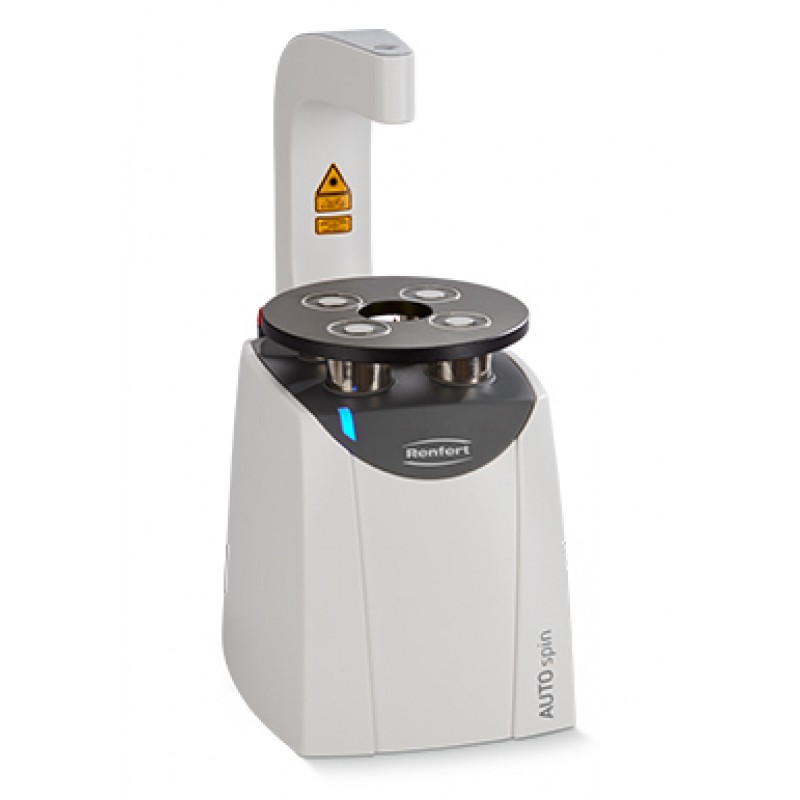

AUTO spin, 220-240 V - Pin drilling unit

Using the AUTO spin pin drill, precise working models with plastic base plates can be fabricated. The drilling unit is also compatible with other model-making systems like Giroform® or Zeiser®.

When uniquely combined with the perfectly matched materials of the AUTO spin model-making system, even the most sophisticated model fabrication is turned into child's play.

Advantages

• Time and cost saving due to reduced use of dental plaster.
• Safe positioning and alignment in challenging impression situations due to the innovative Renfert Level Controller.
• Flexible use for almost any plate geometry due to the universal plate holder with secure double fixation.

Key functions

• Optimal friction of the pins due to holes drilled with high precision.
• High working comfort with the automatic drilling process.

Standard Delivery

• 1 AUTO spin
• 1 Drill
• 1 Plate holder
• 1 Impression holder
• 1 Level controller
• 1 Adjusting tool for drilling depth (screwdriver Torx T5)
• 1 Tool for drill fixing (L-key Torx T10)
• 1 Laser sticker set
• 1 Quick Start Guide
• 1 AUTO spin system illustrated manual

Optional Accessories

• 1860 0100 AUTO spin Base plate standard (100 pcs.)
• 1860 0200 AUTO spin Base plate comfort (100 pcs.)
• 1860 0300 AUTO spin Secondary plate (50 pcs.)
• 1860 0400 AUTO spin Silicone putty 1 kg
• 1860 0500 AUTO spin Cone pin drill
• 1860 0600 AUTO spin Universal plate holder
• 1860 0700 AUTO spin Universal impression holder
• 369 2000 AUTO spin Cone pin (1.000 pcs.)

Technical Data

• Dimensions (width x height x depth): 180 x 368 x 275 mm [7.1 x 14.5 x 10.8 inch]
• Permissible drill shaft diameter: 3.00 mm + 0 / - 0.006 mm
• Total drill length (min. - max.): 38 - 40 mm [1.5 - 1.57 inch]
• Weight: 7.6 kg [16.8 lbs]
