PALAMAT PREMIUM - SMALLER OUTSIDE, SMARTER INSIDE.

ONE WATER-BATH POLYMERISATION DEVICE FOR ALL

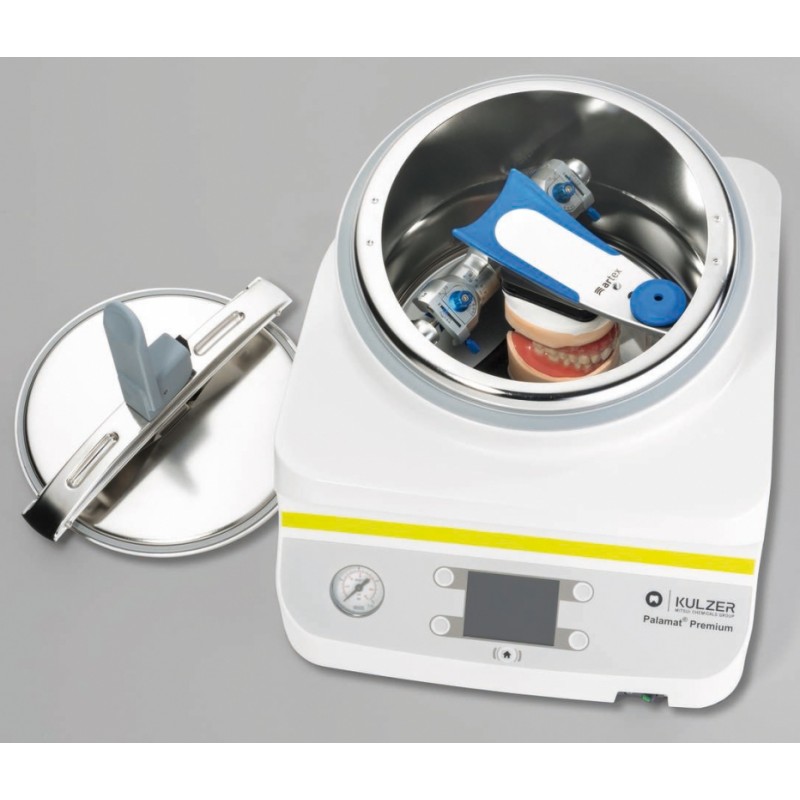

Palamat Premium offers a new, space-saving design, but it’s actually bigger inside, where it counts. The unit features a wider opening and greater capacity than the previous model, so even very large articulators can fit inside (Including the Artex, as this is what the market has requested). It’s the only device dental technicians need to cover most indications and polymer types (Heat and Cold Curing Acrylics)

INSTRUCTION MANUAL

INFORMATION BROCHURE

Benefits at a glance:

User friendly

• Temperature, pressure & time always visible
• Common programmes pre-set, yet fully adaptable
• Icon-based, interactive operating menu. No languages

Everyday simplicity

• Wider opening, larger capacity & smaller footprint
• Fits standrad articulators or six dentures
• Proven pressure lock system

Clean-lab design

• Optimised surface for easy cleaning
• Improved water drainage
• Functional in all conditions and clean-wipeable

Operating parameters

• 3 Freely Configurable Programs A / B / C
• Temperature Range: 40 – 98°C
• Air Pressure: off/on [2bar]
• Timer: off/on [0:01 – 9:59 h:min]
• Prog. 1: 45°C – BAR – no pre-set timer
• Prog. 2: 55°C – BAR – no pre-set timer
• Prog. 3: 98°C –BAR – no pre-set timer
• NEW Stepped Heat Cure Setting:
  • Can be selected via the temperature menn
  • Hold at 70°C for 1 ½ hours, then 99°C for ½ hour
  • After program is finished, hold at 70°C
• Cold curing polymers 45°C / 55°C
• Heat curing polymers 99°C
• Minimum Water Level 5cm

• Includes: Powercord, CD With Instructions, Air Hose with One Connection Style 2 x Clamps

  Optional Extra: 8mm ED Drain Hose (NOT SUPPLIED)

  Compressed air connection required to suit your labs internal air lines / air fitting style if not the same as one provided with unit.

Capacity

• Up to 6 full dentures
• 1 standard articulator with denture
• 3 Palajet duo flasks

Tank Internal Dimensions:

190mm High (To Top Of Lip) x 210mm Wide Diameter

External Whole Unit Dimensions:

Height 300 mm  / Required Space: approx. 450 mm

Width 305 mm / Required Space: approx. 315 mm

Depth 400 mm / Required Space: approx. 550 mm

Weight 8.6 kg
