Detax Freeprint CROWN (Permanent Crowns, Denture Teeth, Long Term Temp Bridges) 385 DLP 3D Printing Resin - 500g and 1000g
- Brand: Detax
- Product Code: D-FP-C**-****
3D Print Resin Stock Holding Information and Leadtimes:
Initally given the nature of the digital landscape in the dental industry, Durodent will only be stocking the most common requested products and colours.
Supplementary products and shades maybe added to our range and ordered on request (2 - 4 weeks leadtimes).
If you have particular interest in other ranges like Gingiva, Model, Cast, Thermoforming Heat Resistant Model resins etc please contact us to discuss.
Detax FREEPRINT CROWN 385 DLP 3D Printing Resin - 500g and 1000g
* Please check IFU (Instruction For Use) for Validated Medical Device (MD) Process and Equipment
* Asiga and Otoflash Validated
* ARTG Registered 413802
* SDS / MSDS Download

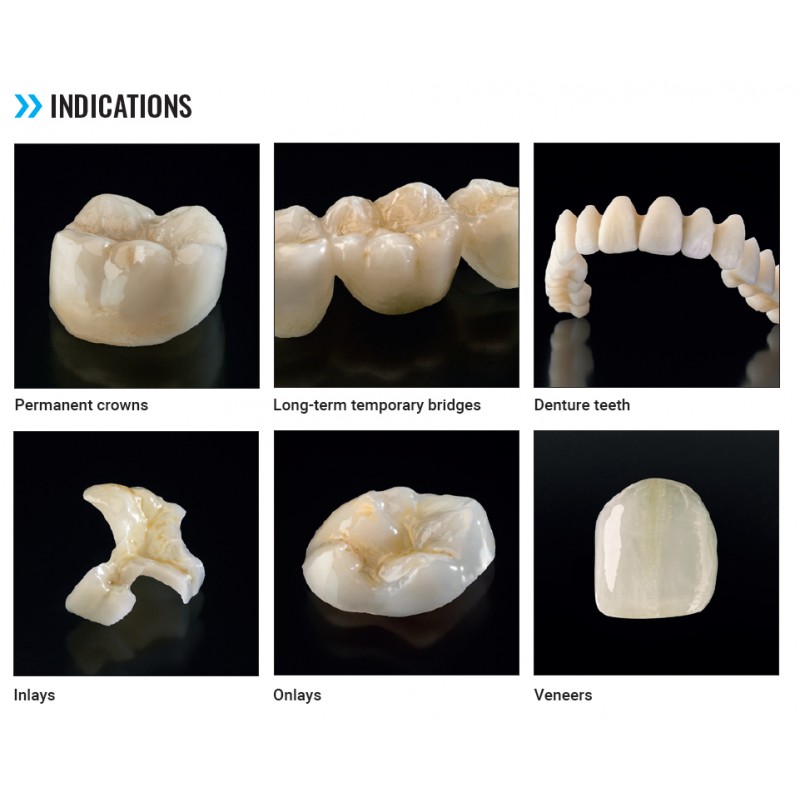

PERMANENT CROWNS
DENTURE TEETH
LONG-TERM TEMPORARY BRIDGES
Made In Germany - Detax is a leading trusted chemical and dental material manufacture
- Ceramic filled 3D resin
- Natural translucency & opacity
- Permanent crowns > 10 years wearing period
- Quick & easy post-processing due tominimum chalking of the surface
- Highest flexural strength & abrasion resistance
Facts and scientific study result PDF DOWNLOAD
Light-curing formulation for 3D printing of permanent crowns, denture teeth and long-term temporary bridges.
"During the chewing simulation, the permanent crowns were loaded with 2.5 million cycles, corresponding to a simulation of 10 years of wear.”
Colors: A1, A2, A3, B1, B3, C2, D3, BL
Wavelength: 385 nm
Medical device Class IIa
-
Process Validation
-
385nm DLP Printers: Asiga (All), Microlay, Miicraft, Rapid Shape, Straumann, W2P
-
Curing Devices: Otoflash, Dentalfarm
-
- Highest fracture stability during the entire wearing time
- Fast, uncomplicated cleaning process
- Easy grinding and polishing due to minimal surface chalking
- MMA- & THF-MA-free
TGA Registered Medical device Class 2a
Parameters | Standard | Unit | Results |
Flexural strength Flexural modulus | DIN EN ISO 104771) DIN EN ISO 104771) | MPa MPa | > 100 > 2800 |
Water absorption Solubility Hardness | DIN EN ISO 104771) DIN EN ISO 104771) – | μg/mm³ μg/mm³ Barcol | < 40 < 7.5 > 50 |
Biocompatibility | DIN EN ISO 10993-12) | – | fulfilled |
1) Crown and veneering resins (in keeping with the standard at room temperature)
2) Biological assessment of medical devices – Part 1: Assessment and testing in the context of a risk management system
FREEPRINT® CROWN A1 | 500 g | 02372 | 1.000 g | 02376 |
FREEPRINT® CROWN A2 | 500 g | 02378 | 1.000 g | 02415 |
FREEPRINT® CROWN A3 | 500 g | 02417 | 1.000 g | 02446 |
FREEPRINT® CROWN B1 | 500 g | 02481 | 1.000 g | 02519 |
FREEPRINT® CROWN B3 | 500 g | 02645 | 1.000 g | 02758 |
FREEPRINT® CROWN C2 | 500 g | 02766 | 1.000 g | 02782 |
FREEPRINT® CROWN D3 | 500 g | 02783 | 1.000 g | 02825 |
FREEPRINT® CROWN BL | 500 g | 02845 | 1.000 g | 02884 |
