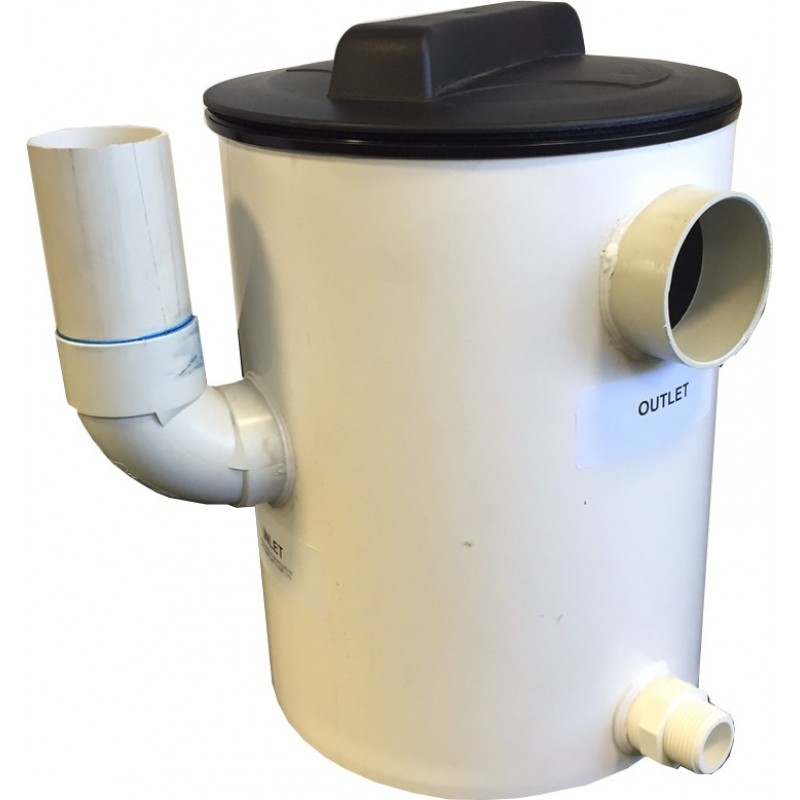

Plaster Trap (Settling Tank) 12 Litre PVC - Round with Grit Basket and Sealed Lid - Australian Made

Australian Made and Standards

Standard Tank Stock Outlet Locations: Inlet and outlet at opposite sides in a straight line (NOT AS PICTURED)

* Standard Tank Stock has inlet and outlet at opposite sides in straight line.

* To be installed by a licenced plumber

Applications: Dental lab and dental office under sink/bench areas

DOWNLOAD INFO - Small Round Plaster Trap Models PDF and Installation Guidelines

Australian Made ‐ PVC

Manual Empty

Supplied With: Removable Airtight Cover, Grit Basket, Drain Valve Nipple connection point, Sampling Valve Nipple connection point (Does not include valves)

65mm Outlet / 50mm Inlet / Drain Nipple 25 BSP-M

DOWNLOAD INFO - Small Round Plaster Trap Models PDF and Installation Guidelines

Can be custom made – Decide where you need Inlet, Outlet and Sample Drain Positioned (4 Weeks Leadtime)

*** Measurements below are tank only and do not include outlets overhang. Allow extra 150mm clearance around tank for outlets and fittings.
